Description

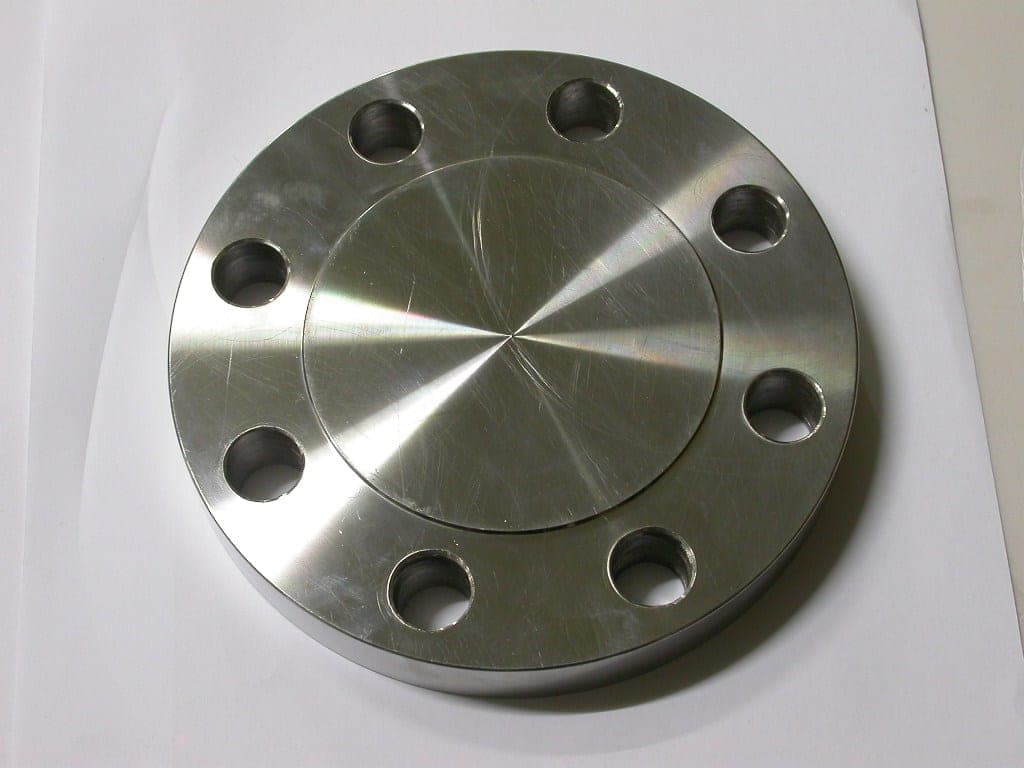

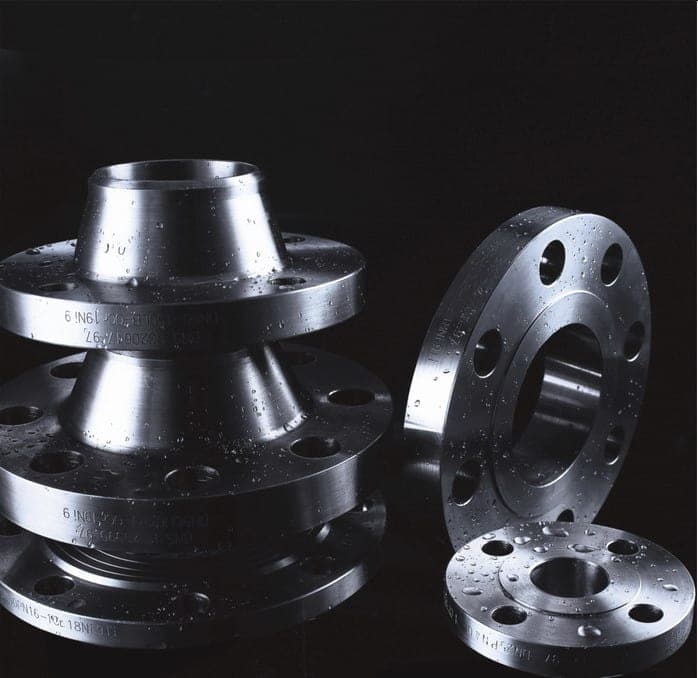

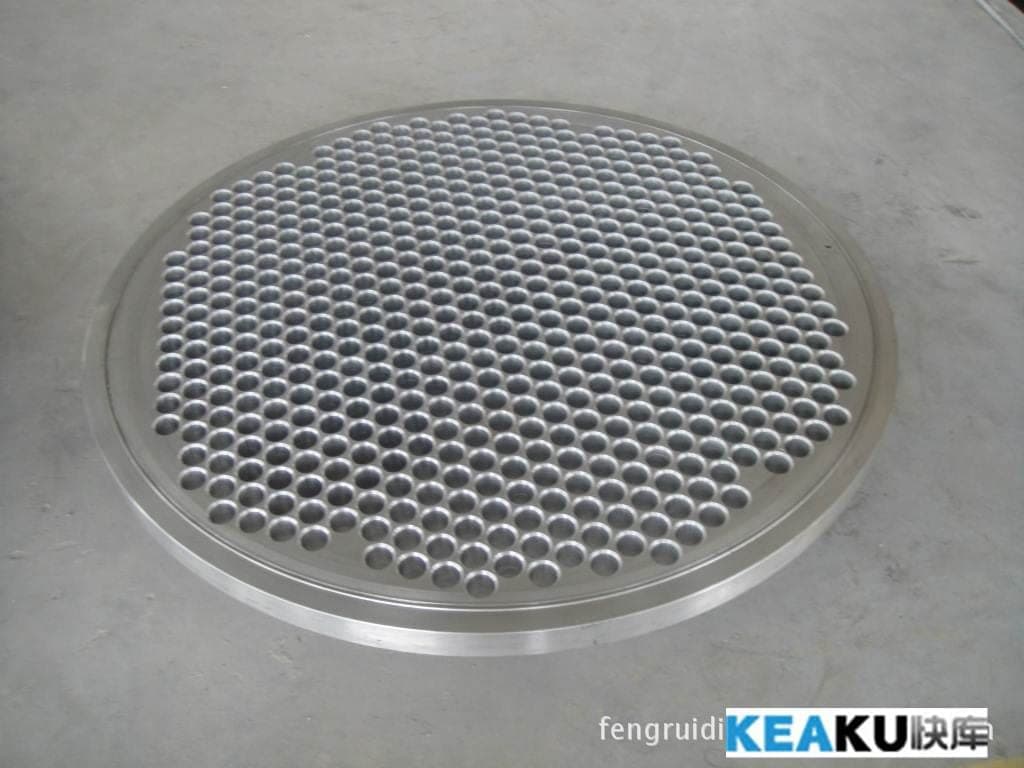

Flanges are used for pipe-end and equipment nozzle connections. Available types include plate flanges, welding neck flanges, socket welding flanges, threaded flanges, loose flanges, blind flanges, tube sheets and spectacle blinds.
- Material / Standard
- Carbon Steel, Stainless Steel, Alloy Steel
- Size range
- ASME/ANSI B16.5 / B16.47 ranges shown in company profile
- Pressure / Wall
- Class 150 - 2500
- Applications
- Boilers, pressure vessels, oil, chemical, shipbuilding, pharmaceutical, metallurgy, machinery, food and industrial piping.
- Technical specs
- Available specifications include PN2.5 to PN400 and Class 150 to Class 2500 pressure markings. Materials include A105, LF2, A182 F304/F316/F316L and alloy steels. Facing, standard and dimensions are confirmed by drawing or RFQ.
Standards and Materials
The following supports product selection and RFQ communication. Final requirements follow drawings, standards and purchase documents.
MaterialFITTINGS
ASTM/ASME A/SA 234WPB / WPC / WP1 / WP11 / WP12 / WP22 / WP5 / WP9
MSS SP75 / ASTM A860WPHY42 / WPHY52 / WPHY60
ASTM/ASME A/SA 420WPL6
ScopeFlange and related piping components, final specification by drawing or RFQ
