Description

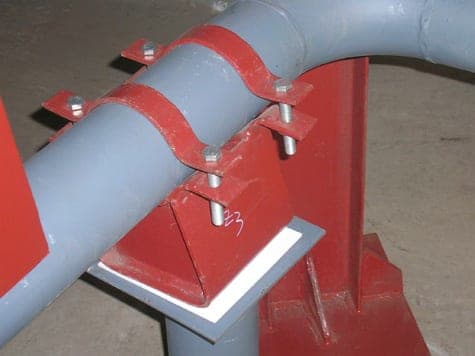

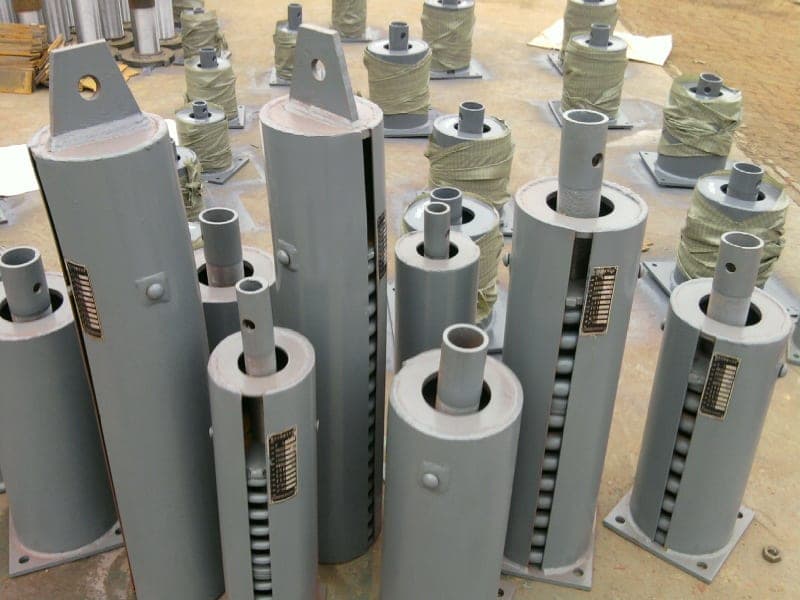

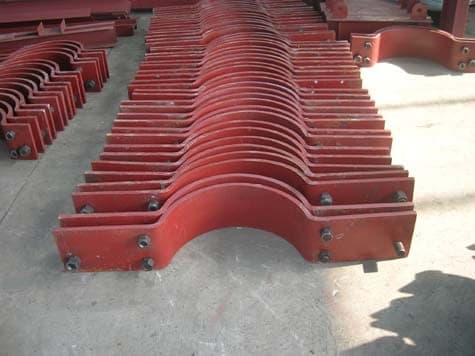

The support and hanger document lists spring supports, variable spring hangers, constant setting spring components, disc spring hangers, pipe clamps, pipe seats, sliding supports, guide supports and fixed supports.
- Material / Standard
- Confirmed by drawing or RFQ
- Size range
- Confirmed by drawing or RFQ
- Pressure / Wall
- Confirmed by drawing or RFQ
- Applications
- Thermal power, large chemical plants, steam-water piping, flue gas and pulverized coal piping and industrial pipe support systems.
- Technical specs
- The document references factory production according to thermal power steam-water support standards and 74DD flue gas/pulverized coal parts design. Model, load and displacement are confirmed by drawing.
Standards and Materials
The following supports product selection and RFQ communication. Final requirements follow drawings, standards and purchase documents.
MaterialFITTINGS
ASTM/ASME A/SA 234WPB / WPC / WP1 / WP11 / WP12 / WP22 / WP5 / WP9
MSS SP75 / ASTM A860WPHY42 / WPHY52 / WPHY60
ASTM/ASME A/SA 420WPL6
ScopePipe Support and related piping components, final specification by drawing or RFQ
