Description

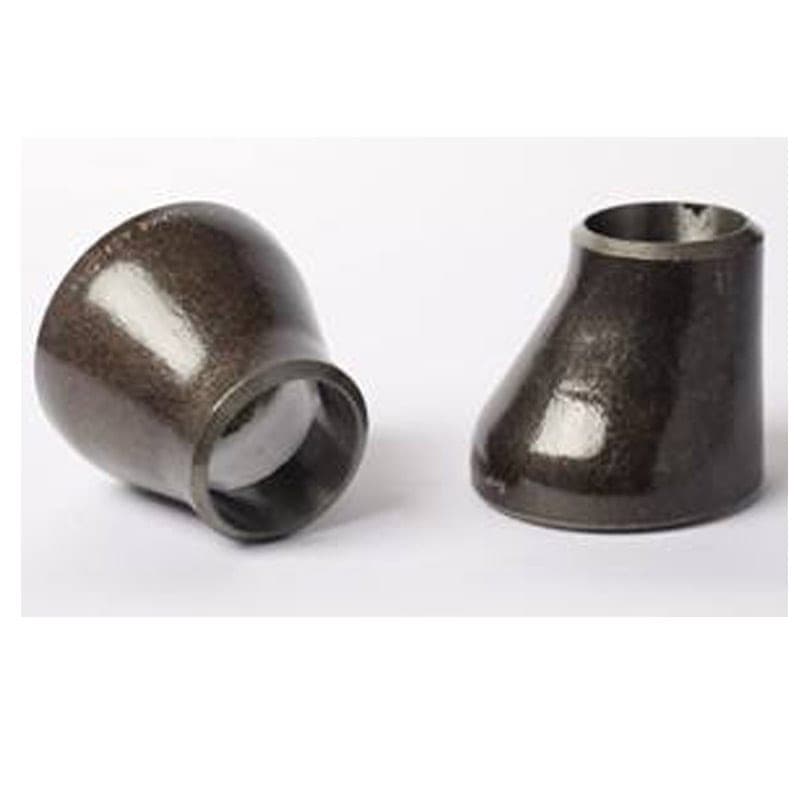

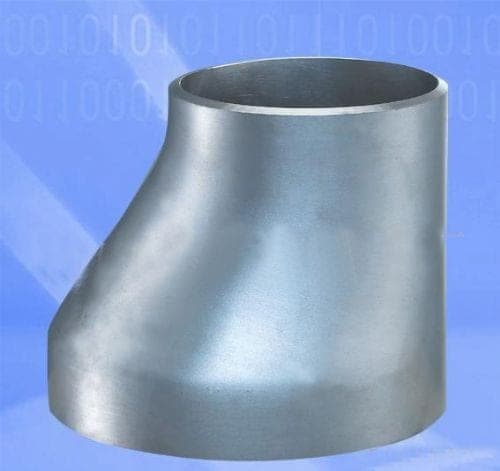

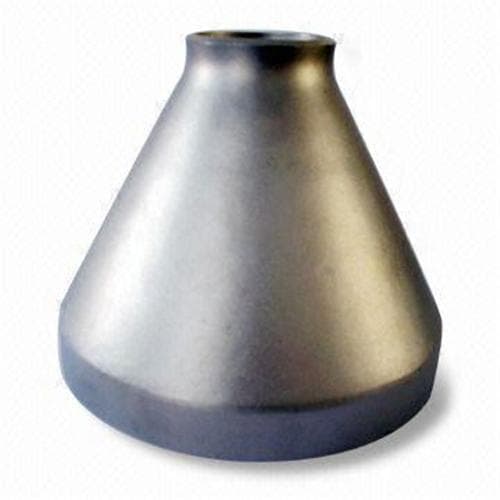

Reducers connect two different pipe sizes and include concentric and eccentric reducers. The product range includes reducing, expanding, combined reducing-expanding, stamping and welded plate fabrication processes.
- Material / Standard
- ASTM A-234, ASME/ANSI B16.9
- Size range
- Reducers and reducing tees listed up to 48 inch combinations
- Pressure / Wall
- Standard Weight, Extra Strong, Schedule 160, Double Extra Strong
- Applications
- Pipe size transition, process line modification, industrial plant piping and prefabricated pipe spools.
- Technical specs
- National, chemical, power, American, British and nonstandard drawing requirements can be followed. Large end, small end, wall thickness, eccentricity and material are confirmed by drawing or RFQ.
Standards and Materials
The following supports product selection and RFQ communication. Final requirements follow drawings, standards and purchase documents.
MaterialFITTINGS
ASTM/ASME A/SA 234WPB / WPC / WP1 / WP11 / WP12 / WP22 / WP5 / WP9
MSS SP75 / ASTM A860WPHY42 / WPHY52 / WPHY60
ASTM/ASME A/SA 420WPL6
ScopeReducer and related piping components, final specification by drawing or RFQ
